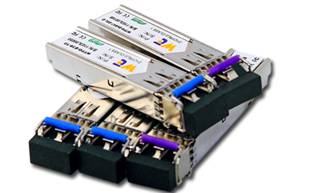

SFP transceiver

Feature

SFP package with LC connector Single +3.3V Power Supply Up to 80Km transmission with single-mode fiber Compliant with Telcordia (Bellcore) GR-468-CORE Eye Safety Designed to Meet Laser Class1,Compliant with IEC60825-1 RoHS Compliant Products Available

Standard part

Part No.	Package (bps/Hz)	Data Rate	Tx(nm)	Pout (dBm)	Rx	Sensitivity (dBm)	Temp °C	Reach	Other Option
WTPD-H59-60L	SFP	2.5G	1550nm DFB	0~5	PIN	≤-25	0-70°C	60km	DDM RoHS
WTPD-H39-40L	SFP	2.5G	1310nm DFB	-5~0	PIN	≤-22	0-70°C	40km	DDM RoHS
WTPD-H39-40L-D	SFP	2.5G	1310nm DFB	-5~0	PIN	≤-22	0-70°C	40km	DDM RoHS
WTPD-H39-20L	SFP	2.5G	1310nm DFB	-8~-3	PIN	≤-22	0-70°C	20km	DDM RoHS
WTPD-G59-1BL	SFP	1.25G	1550nm DFB	0~5	APD	≤-32	0-70°C	120km	DDM RoHS
WTPD-G59-80L	SFP	1.25G	1550nm DFB	0~5	PIN	≤-26	0-70°C	80km	DDM RoHS
WTPD-G39-20L	SFP	1.25G	1310nm FP	-8~-3	PIN	≤-24	0-70°C	20km	DDM RoHS
WTPD-G88-05L	SFP	1.25G	850nm VCSEL	-8~-3	PIN	≤-19	0-70°C	550m	DDM RoHS
WTPD-E59-80L	SFP	155M	1550nm DFB	-5~0	PIN	≤-36	0-70°C	80km	DDM RoHS
WTPD-E39-40L	SFP	155M	1310nm FP	-15~-3	PIN	≤-36	0-70°C	40km	DDM RoHS
WTPD-E39-20L	SFP	155M	1310nm FP	-15~-3	PIN	≤-36	0-70°C	20km	DDM RoHS
WTPD-E39-20L-D	SFP	155M	1310nm FP	-15~-3	PIN	≤-36	0-70°C	20km	DDM RoHS
